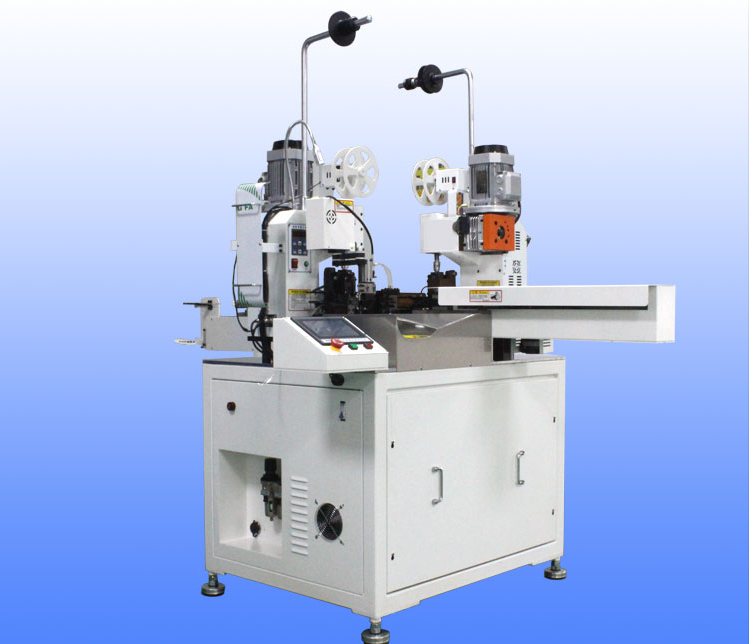

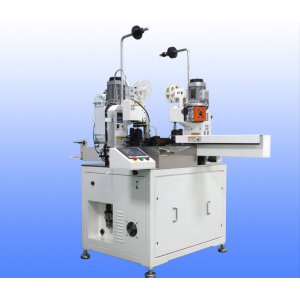

Automatic five wire cutting stripping crimping machine

Video link: https://youtu.be/4aD9NkMEOuo

Specification:

Name: Automatic five wire two ends wire cut strip crimp machine

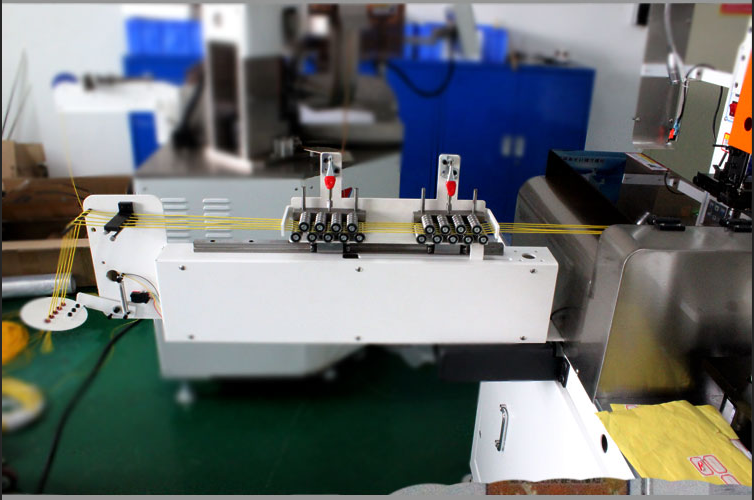

Product range: single wire, flat wire max 12P(customized)

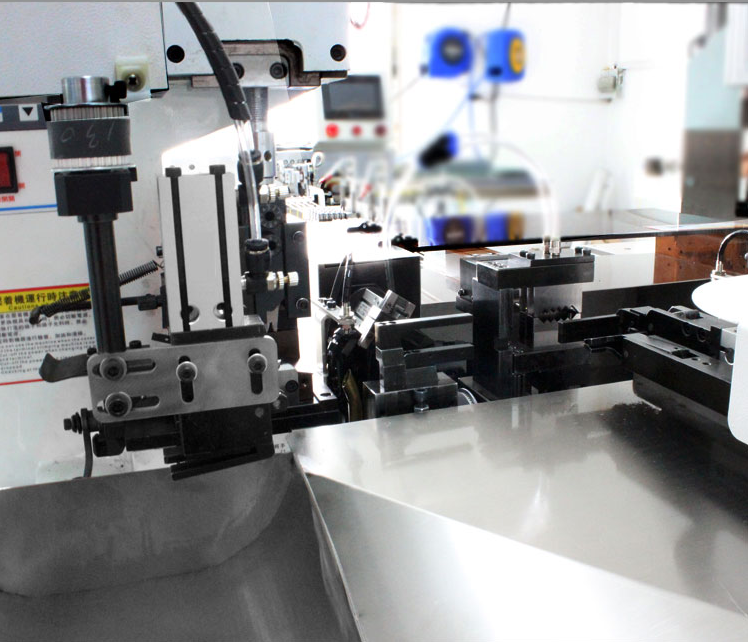

Function: cutting, stripping, two sides crimping

Wire range: AWG16-32#, other size can be specially ordered

Cutting length range: 10-600mm(can be special ordered)

Speed:6000-8000pcs/hour(varies on wire cutting length, wire materials, wire sizes)

Preciseness: 0.1mm

Voltage: AC220V 50HZ

Air pressure: 0.4-0.5MAP

Detection: wire absence, pressing failure, lack of air

Stripping length: A end 1-9mm/half strip 3-9mm; B end 1-9mm/half strip 3-9mm

Crimping force: 2T

Operation display: 6sets servo motors+LCD display

Machine size: 2270*1240*1900mm(including the bulge)

Machine weight: 460kg
